Custom connectors let your workflows interact with internal systems, specialist data providers, regulatory databases, and any other service that exposes a REST API.

​

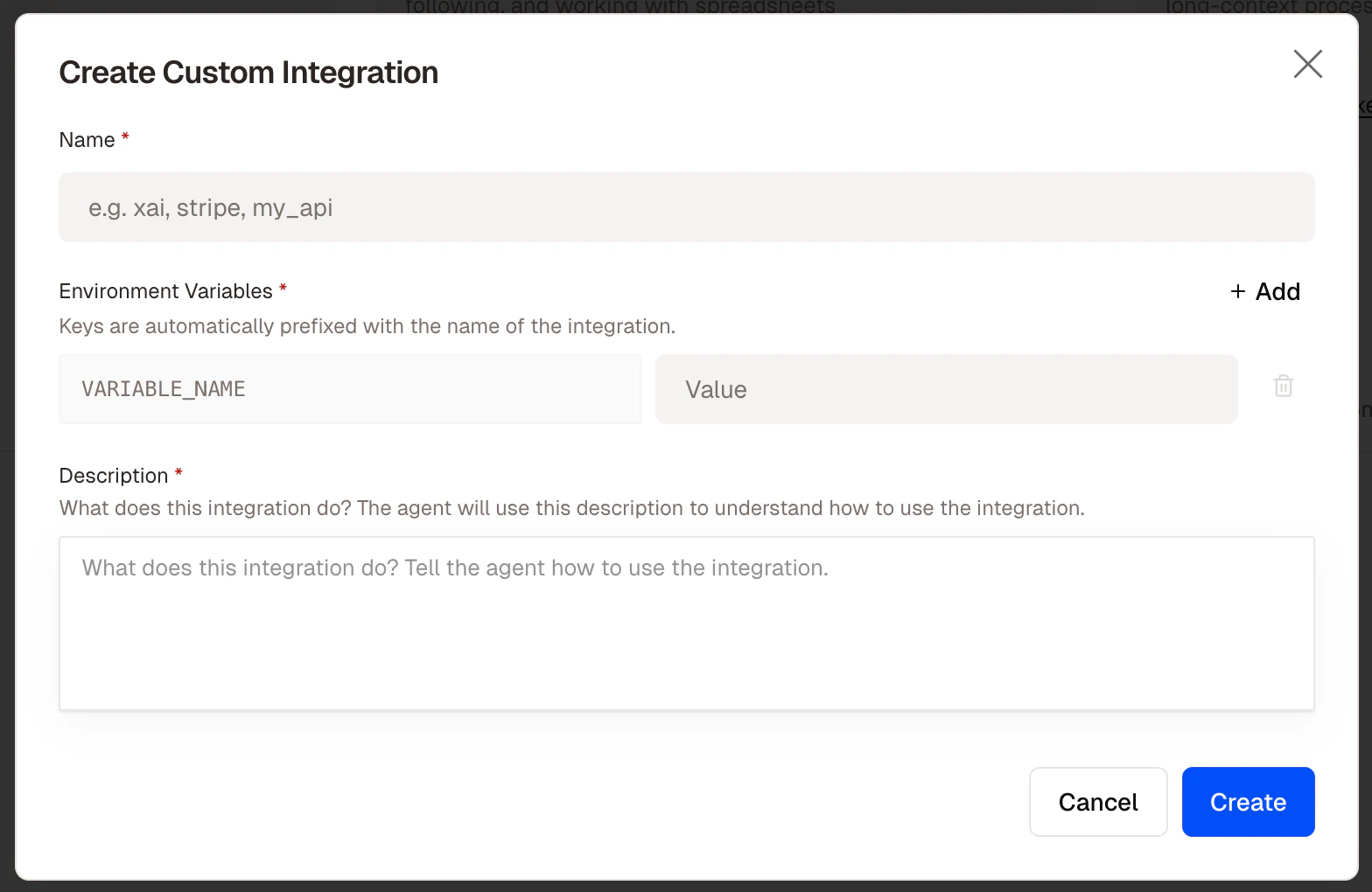

How to add a custom connector

  1. Go to Settings → Connectors → Custom
  2. Click Add custom connector
  3. Fill in the three required fields:
Name — A short identifier for the connector — letters and underscores only. This becomes the @mention you use in step descriptions and the prefix for your credential keys.
companies_house
internal_crm
regulatory_db
Environment variables — The API credentials Felix needs to authenticate with the service. Add at least one key-value pair:
  • Key — letters and underscores only, e.g. API_KEY, SECRET
  • Value — the credential value (stored encrypted)
Felix automatically prefixes keys with the connector name. A connector named companies_house with key API_KEY becomes COMPANIES_HOUSE_API_KEY in the generated code. You can add multiple credentials per connector. Duplicate keys are rejected. Description — Explain what the API does and how to use it. Felix reads this description when generating code for steps that reference the connector — the more clearly you describe the API, the more accurately Felix will call it.
The Companies House API provides company registration data for
UK businesses. Use it to fetch company profiles, filing history,
and director information by company number or name. Base URL:
https://api.company-information.service.gov.uk
  1. Click Save
Your connector is now available across all workflows using the name you chose.

​
Using a custom connector in a step

Reference it by name in any step description, exactly like a built-in connector.
Fetch the filing history for the company from @companies_house.
Extract the filing date, filing type, and description for each
filing in the last 12 months.

​
Managing custom connectors

From Settings → Connectors → Custom you can edit a connector’s name, credentials, or description, add or remove environment variables, or delete a connector. Deleting a connector does not delete workflows that reference it, but those workflows will fail at steps that use it until a replacement is connected.

​
Security

All custom connector credentials are encrypted at rest using AES encryption. Felix only uses them when a workflow step requires it. Credentials are never exposed in logs, outputs, or the code view.

​
Tips

  • Write a detailed description. The description is how Felix understands the API. Include the base URL, what the API does, and any important usage notes.
  • Test with a simple step first. Before building a complex workflow around a custom connector, create a single step that fetches a known record to confirm the connection works.
  • Use descriptive names. @land_registry and @internal_dms read naturally in step descriptions. @api1 does not.
  • Add multiple credentials where needed. If an API requires both an API key and a secret, add both as separate environment variables under the same connector.
